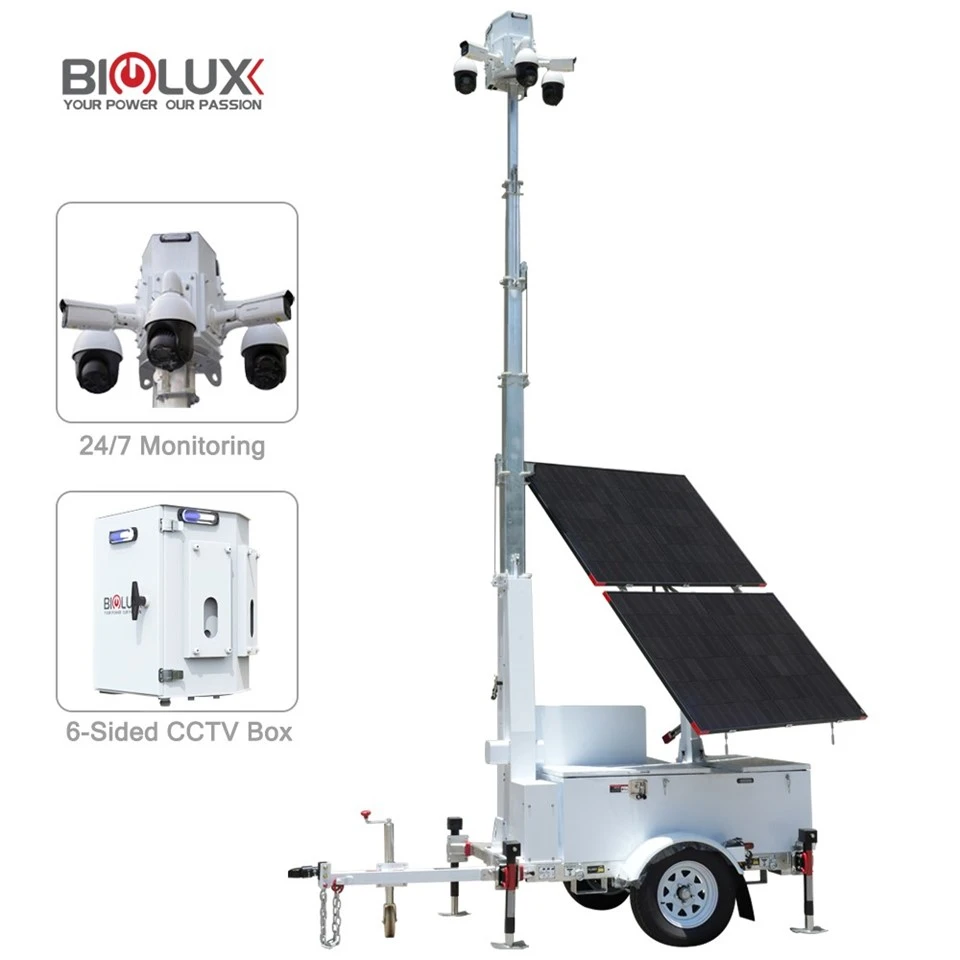

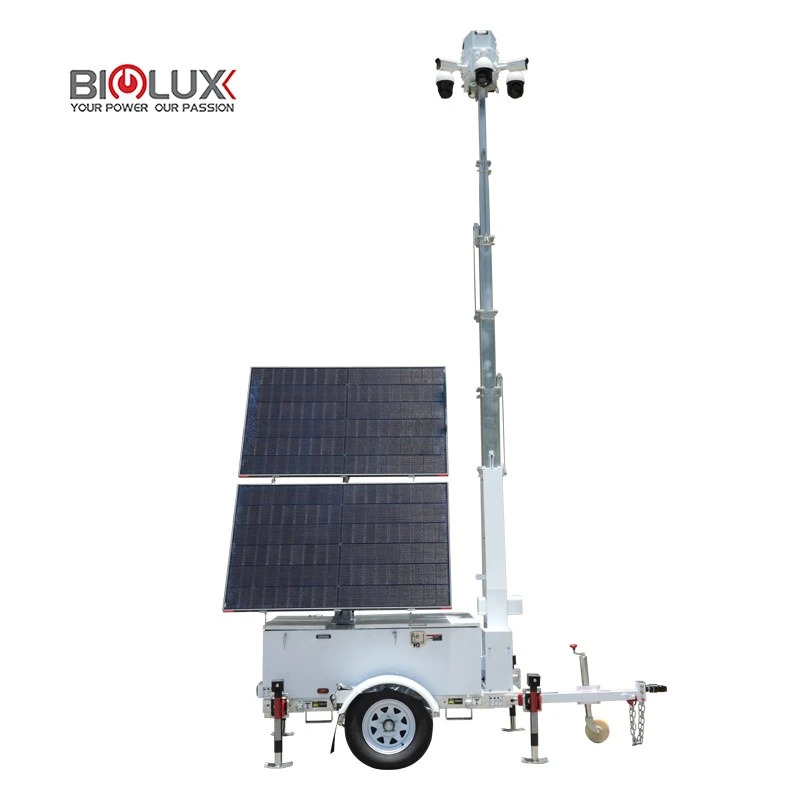

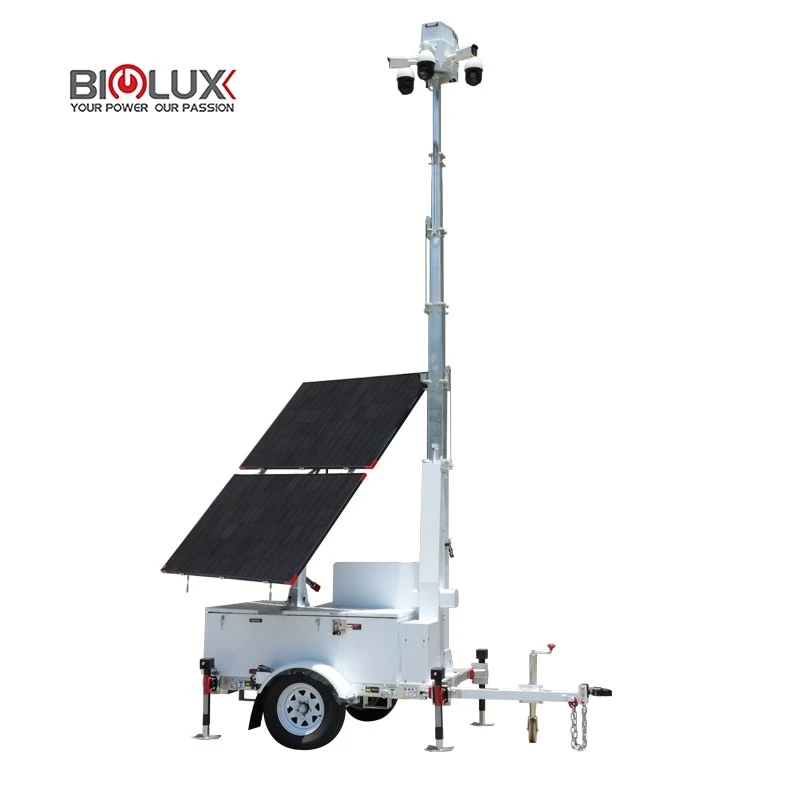

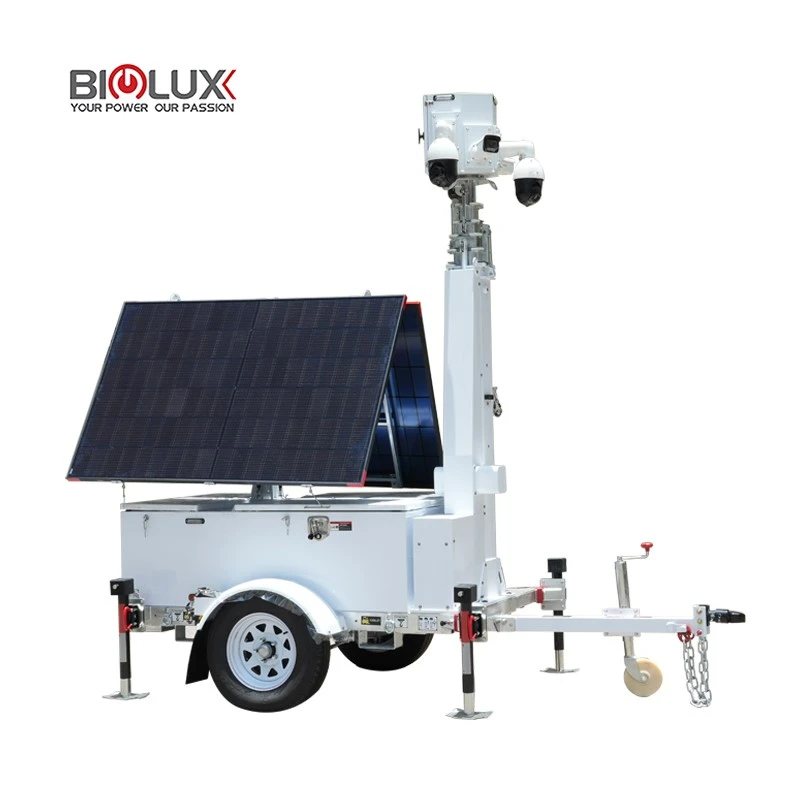

BIGLUX Latest 2*600W Mobile Solar Trailer

BIGLUX Latest 2*600W Mobile Solar Trailer

Video Description Products Details Solar Panels Equipped with 180° horizontal rotation and 30–60° motorized tilt adjustment, the solar panels provide up to 1200W power output. The intelligent adjustment design helps optimize the panel angle according to sunlight conditions,...
Send Inquiry
Description
Technical Parameters

banner1



Video Description





Products Details



solar panels

Solar Panels



Equipped with 180° horizontal rotation and 30–60° motorized tilt adjustment, the solar panels provide up to 1200W power output. The intelligent adjustment design helps optimize the panel angle according to sunlight conditions, ensuring more efficient renewable energy generation.

Benefits: ✔ adaptable panel positioning, ✔ improved sunlight utilization, and ✔ quicker deployment with reduced manual adjustment effort.

CCTV Box



Designed for professional surveillance applications, the CCTV Box integrates a six-sided housing, removable camera mounting plate, full 360° rotation capability, rear service access, ventilation fan, and four warning strobes. The optimized structure provides greater flexibility during deployment while enhancing long-term usability.

Key benefits: ✔ rapid deployment in different locations, and ✔ easier camera installation and maintenance with improved accessibility.

cctv box
mast

Built - in Wires



Built for long-term outdoor applications, the telescopic mast adopts a hidden wiring design, a maximum extension height of 9 meters, and fully galvanized mast sections for superior durability. The optimized structure helps maintain stable performance under harsh environmental conditions.

Benefits: ✔ stronger protection against aging and harsh weather, ✔ reduced risk of cable damage or vandalism, and ✔ extended service durability with a corrosion-resistant galvanized frame.

Hot - Dip Galvanized



Designed for demanding outdoor applications, the solar surveillance tower incorporates hot-dip galvanized coating on major structural components. Compared with standard electroplated surfaces, the galvanized layer is significantly thicker, offering superior rust prevention and durability.

Benefits: ✔ minimal maintenance over the product lifecycle, ✔ enhanced structural longevity, and ✔ stable operation in challenging environments such as coastal areas, humid climates, and temperature extremes.

hot-dip galvanized



waterproof

Waterproof



Built for outdoor surveillance applications, the solar tower adopts a waterproof structure with enhanced sealing solutions and concealed blind-hole fasteners. The optimized design provides strong protection against rain, humidity, and external moisture exposure.

Benefits: ✔ reliable waterproof protection, ✔ improved internal equipment safety with a sealed cabin design, and ✔ continuous operation in wet environments, including rainy and high-humidity conditions.

Oversized Trunk



Featuring a high-capacity storage trunk with 8 sq. ft. of internal space, the mobile solar trailer offers a practical solution for carrying and organizing essential site equipment. The enlarged compartment improves overall usability and deployment flexibility.

Benefits: ✔ keeps tools and surveillance accessories securely stored, and ✔ provides extra capacity to support future configuration changes or additional equipment requirements.

trunk



Products Specifications



Product HiSOLO Mobile Solar Surveillance Trailer Tower
Models BL2P-G7MHSS0B BL2P-L7MHSS0B BL2P-G9EHSS0P BL2P-L9EHSS0P
Solar Panel Type Monocrystalline Silicon Type, Dual Facial, 180° Manual Rotating, 30°-60° Electric tilting
Solar Panel Wattage 2*450W 2*600W
MPPT Controller 50A MPPT (With Remote Battery Monitoring) 150/45A MPPT (With Remote Battery Monitoring)
Battery GEL, 9600Wh, DC 24V LFP, 8038Wh, DC 24V GEL, 12000Wh, DC 24V LFP, 14336Wh, DC 24V
Battery AC Charger
1.5kW, AC110V/230V
CCTV Box
350° Rotatable, 6-sided, back-opened, included 8-Port POE Switch. CCTV mounting box for surveilance system
Optional Accessories Cameras, 4G Router, NVR, Loud Speaker
Cables Buit-in composite cable: Network Cable+Power Cable
Telescopic Mast 6.5 Meters, Manual Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Build in Wiring
Trailer Type US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forkift Holes And Lift Rings
Outrigger 4pcs Manual Outriggers, Foldable,Y Shape
Working Temperature -20°C-55℃
Solar Charging Time 9 Hours (Theoretical) 10 Hours (Theoretical)
Battery Backup Time 72 Hours Under 90W Load 72 Hours Under 133W Load
Extended Dimensions
3522*3246*7232mm
4037*3246*9350mm
Retracted Dimension
3522*1630*2880mm
4037*1630*3100mm
Gross Weight 1000KG 1100KG
Container Loading 20GP:6 units, 40HQ: 14 Units
Application Scenarios Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.



Customer Cases

case 5



case 6



case 40



case 7
case 30
case 2







Packaging & Logistics

packaging1
packaging2
packaging3
packaging4

Packaging Details

Sample Shipment:
For sample orders, one solar CCTV tower is securely packed in a customized wooden crate. The protective packaging helps prevent damage during transportation and keeps key components, including solar panels and surveillance equipment, in excellent condition.

Bulk Shipping:
For large-volume orders, 6 units can be efficiently loaded into a 20GP container, while 14 units are suitable for a 40HQ container, optimizing container space utilization and reducing transportation costs.


Logistics Advantages

From factory handling to final container loading, every step is carefully managed to ensure safe and efficient delivery. Professional forklift operations and secure packing methods help protect the solar surveillance towers throughout the shipping process.

Whether for a single evaluation unit or large-scale project deployment, our optimized packaging and logistics solutions provide reliable protection, smooth transportation, and timely delivery worldwide.



Company Profile



10Years of experience
in Mobile Power Solutions

BIGLUX specializes in integrated mobile solar solutions, combining expertise in R&D, engineering design, and manufacturing. With advanced solar trailer and tower technologies, we develop innovative off-grid energy products, including solar lighting towers, solar surveillance towers, and mobile power systems that combine renewable energy generation with intelligent battery storage.

Our solutions are widely deployed across a variety of commercial and industrial applications, including construction projects, outdoor parking facilities, sporting events, military operations, and emergency response scenarios. Supported by extensive industry experience, BIGLUX has delivered successful projects across North America, Europe, the Middle East, and other global markets.

As a reliable long-term partner, we focus on delivering durable, low-maintenance, and cost-effective solar solutions that help customers improve efficiency, reduce operating costs, and achieve sustainable energy goals.

BIGLUX

10+
Industry Experience
10K+
Factory land occupation
500+
Global Projects
200+
Monthly Capacity
1
2
5
6


Certificate Of Honor




1ISO

ISO

CE-BIGLUX 1

CE

DOT

DOT

4CR

CR

5WARRANTY

Certificate name





Customer Visit




customer visit - 2

customer visit - 1

customer visit - 4



customer visit - 3
customer visit - 5

customer visit - 7


FAQ



Can I customize the LOGO and colors on your solar trailer?

+

-

Yes, Color and LOGO can be customized.

Does the solar trailer include a CCTV system?

+

-

No, most clients prefer buying a bare trailer and installing cameras locally. our CCTV box is equipped with POE for easy connection, with DC 24V/48V & AC 220V/110V options, it ensures you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you need.

Do you provide shipping services?

+

-

Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.

What's the production lead time?

+

-

Standard sample is generally shipped within 2 weeks, batch orders are generally about 1 month. Please kindly consult our sales team for specifics.

How many cameras can the solar trailer hold?

+

-

Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.

Is there a lithium battery option?

+

-

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

+

-

2-year standard warranty. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
