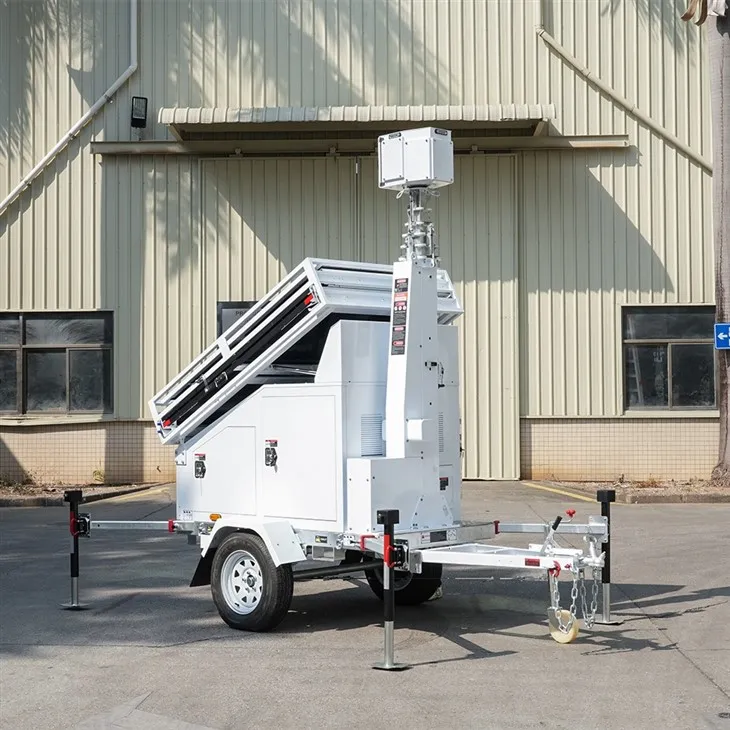

Mobile Solar Powered Generator Trailer



Core Technical Advantages
1. High-Efficiency Solar Power Supply System
•High-power bifacial panels: 5×450W bifacial solar panels, double-sided light absorption to improve power generation efficiency, foldable design for easy installation and transportation, avoiding damage during transit.
•Intelligent angle adjustment: Electric angle adjustment function (25°-53°), free to adjust according to the latitude and sunlight angle of the application site, maximizing solar energy utilization.
•Efficient MPPT controller: Equipped with 80A/90A MPPT controller with remote battery monitoring function, real-time grasp of battery status, 7.7h fast solar charging, realizing rapid energy supplement.
•Dual AC charging: 2.5kW AC charger compatible with 110V/230V global voltage, flexible charging through grid power when needed.

2. High-Safety Energy Storage System
•Dual large-capacity battery options: Standard GEL battery (19200WH) or optional LFP battery (up to 20480WH), meeting different project runtime requirements.
•Independent safety protection: Independent battery compartment design, physical isolation to improve safety; each battery is equipped with independent BMS protection, preventing overcharge, over-discharge and short circuit.
•Continuous rainy day runtime: The optimized energy storage system ensures 72 hours of continuous operation under 213W load in rainy days, without worrying about power shortage in short-term bad weather.

3. Uninterrupted Backup Power Supply
•3KW auto-start generator: Built-in 3KW backup generator with 50L fuel tank, automatic start when solar energy is insufficient or battery power is low, ensuring continuous power supply for the surveillance system.
•Zero security blind spots: Effectively solve the power supply problem of the system in prolonged overcast, rainy and other extreme weather, and completely eliminate security blind spots caused by power interruption.

4. Anti-Theft & Anti-Sabotage Structural Design
•Hidden structural design: Multi-layer anti-theft door, built-in hinge structure without exposed screws, avoiding artificial disassembly and damage.
•Anti-cut internal cables: Integrated anti-cut cables inside the telescopic mast, preventing cable damage and power interruption caused by intentional destruction.
•Stable fixed structure: Equipped with outriggers to enhance the stability of the trailer during operation, preventing artificial moving or tipping.

5. Full-Scenario Weather-Resistant Design
•Professional rust resistance: Telescopic mast base and outriggers adopt hot-dip galvanized process with an average zinc coating thickness of ≥100μm; the outer shell is treated with outdoor powder coating, which can resist rust and corrosion in long-term humid, coastal and industrial environments.
•IP-grade waterproof: Independent electrical compartment and battery compartment design, semi-sealed structure with rainwater direct drainage function; all connection parts are sealed with rubber strips, effectively preventing water seepage even in heavy rain.
•Wide temperature adaptation: Stable operation in the temperature range of -20°C to 55°C, with low-temperature solutions such as thermal insulation cotton and battery heating pads, adapting to high latitude and cold region applications.

6. Tool-Free Installation & Humanized Maintenance
•Quick deployment: No tools required for on-site installation, only simple positioning and fixing to complete the deployment, greatly saving project time and labor costs.
•Easy maintenance: 3 openable outer doors and user-friendly electrical cabinet doors, convenient for daily inspection and maintenance; the rear-opening CCTV box can rotate 350°, easy to install and debug monitoring equipment.
•Plug-and-play POE interface: Built-in 8-port POE power supply interface, supporting direct connection of cameras, NVR and other equipment, no additional wiring required, realizing one-click access.
•Integrated composite cables: Built-in network cable + power cable composite cables, no external messy cables, improving the neatness and safety of the equipment.

7. Global Standard Trailer Design
•Compliant with international standards: Single-axle trailer fully compliant with US/EU/AU standards, suitable for global road transportation and on-site movement.
•Flexible transportation design: Foldable tow bar, equipped with forklift holes and lift rings, convenient for loading, unloading and short-distance movement by forklift or crane.
•Compact retracted size: Small retracted dimensions (165022003080mm/165022003400mm), saving storage and transportation space, and multiple units can be loaded into a container for batch transportation.
